Fire Hose Coupling

08-198-00 GFR Hose Coupling

Size H(mm) W(mm) D(mm) Head
BP25 118 52 19 GFR20
HP40 118 57 24 GFR20

08-148-00 Camlock Hose Coupling

Size H(mm) W(mm) D(mm) Head Tail
DN40 41 ¡Ü100 53 1 1/2" 38mm
DN50 47 ¡Ü111 63 2" 50mm
DN65 49 ¡Ü124 75 2 1/2" 65mm

08-147-00 SMS Hose Coupling

Size H(mm) W(mm) D(mm) Head Tail
DN40 140 74 41 SMS40 38mm
DN65 200 103 76 SMS40 65mm

08-100-00 NOR Hose Coupling

Size H(mm) W(mm) D(mm) Head Tail
1 1/2" 165 74 50 NOR 1 1/2" 38mm
2" 215 83 66 NOR 2" 51mm
2 1/2" 230 103 83 NOR 2 1/2" 65mm

08-100E-00 NOR Adaptor

Size H(mm) W(mm) D(mm) Head Female Thread
1 1/2" 58 74 50 NOR 1 1/2" 1 1/2"BSP
2" 71 83 66 NOR 2" 2" BSP
2 1/2" 85 103 83 NOR 2 1/2" 2 1/2" BSP

08-145-00 Rotta Hose Coupling

Size H(mm) W(mm) D(mm) Head Tail
DN50 144 85 67 Rotta50 52mm
DN70 154 104 84 Rotta70 65mm

08-146-00 Rotta Adaptor

Size H(mm) W(mm) D(mm) Head Tail
DN50 56 82 67 Rotta50 2" BSP
DN70 56 82 84 Rotta70 2 1/2"BSP

08-145-00 Fire Hose Coupling

Size H(mm) W(mm) D(mm) Head Tail
DN50 140 100 40 DN50 50mm

08-040d-00 Australia Hose Coupling

Size H(mm) W(mm) D(mm) Thread Tail
DN40 165 92 29 1 1/2"BSP 38mm
DN65 218 130 29 NSW 38mm
DN65 218 130 53 NSW 65mm
DN65 218 130 29 QRT 38mm
DN65 218 130 53 QRT 65mm

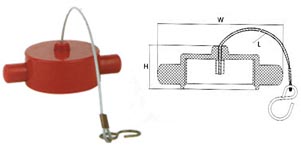

10-023C-00 Australia Blank Cap

Size H(mm) W(mm) L(mm) Female Thread
2 1/2" 50 146 370 NSW
2 1/2" 50 146 370 QRT

08-101D-00 Fire Hose Coupling

Size H(mm) W(mm) D(mm) Head Tail
DN40 140 95 68 1 1/2" 38mm
DN40 130 95 68 1 1/2" 42mm
DN80 190 140 105 2 1/2" 75mm

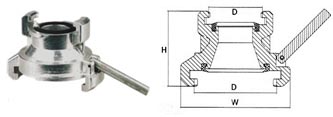

08-101D4-00 Fire Hose Coupling Adaptor

Size H(mm) W(mm) D(mm) Head
40/80 95 139 68/105 DN40/DN80

08-109-00 38mmFire Hose Coupling

Size H(mm) W(mm) D(mm) Head Tail
DN25 98 76 55.33 38mm 1 3/16"
DN38 98 76 55.33 38mm 1 3/4"

08-109D-00 38mm Coupling Adaptor with Female Thread

Size H(mm) W(mm) D(mm) Head Tail
DN25 36 76 55.33 38mm 1"NPSH
DN38 36 76 55.33 38mm 1 1/2"BSP

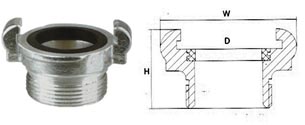

08-109E-00 38mm Coupling Adaptor with Male Thread

Size H(mm) W(mm) D(mm) Head Tail
DN25 36 76 55.33 38mm 1"NPSH
DN38 36 76 55.33 38mm 1 1/2"BSP
