COUPLING >> PAGE   1   2   3   4   5   6   7   8   9   10   11

UNI Hose Coupling

08-006B-00 UNI Hose Coupling

Size H(mm) W(mm) Head Tail
UNI25 110 47 M34x3 25mm
UNI45 155 75 M56x4 45mm
UNI70 195 105 M85x6 70mm

08-040F-00 UNI Hose Coupling

Size H(mm) W(mm) W(mm) Head Tail
DN100 310 175 90 M115x6 100mm
DN125 333 200 115 M140x6 125mm

08-006-00 UNI Hose Coupling

Size H(mm) W(mm) Head Tail
UNI45 106 65 M56x4 45mm
UNI70 165 100 M85x6 70mm

08-008-00 UNI Male Threaded Adaptor

Size H(mm) W(mm) Head Male Threaded
UNI45 42 56 M56x4 1 1/2"BSP
UNI45 44 68 M56x4 2"BSP
UNI45 48 83 M56x4 2 1/2"BSP
UNI70 48 85 M85x6 1 1/2"BSP
UNI70 48 85 M85x6 2"BSP
UNI70 51 86 M85x6 2 1/2"BSP
UNI100 60 115 M115x6 3"BSP
UNI100 60 120 M115x6 4"BSP

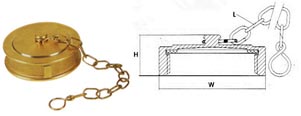

08-006-00 UNI Blank Cap

Size H(mm) W(mm) Head L(mm)
UNI45 32 70 M56x4 300
UNI70 38 100 M85x6 300
