Barcelona Hose Coupling

08-189-00 Barcelona Hose Coupling

Size H(mm) W(mm) D(mm) Head Tail
DN45 145 90 62 UNE45 45mm
DN70 170 118 88 UNE70 70mm

08-143-00 Barcelona Hose Coupling

Size H(mm) W(mm) D(mm) Head Tail
DN45 145 90 62 UNE45 45mm
DN70 170 118 88 UNE70 70mm

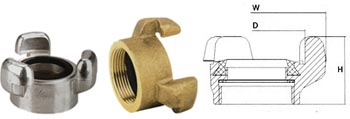

08-189B-00 Barcelona Adaptor with Female Thread

Size H(mm) W(mm) D(mm) Head Female Thread
DN45 43 90 62 UNE45 1 1/2"BSP
DN70 43 118 88 UNE70 2 1/2"BSP

08-189E-00 Barcelona Adaptor with Male Thread

Size H(mm) W(mm) D(mm) Head Male Thread
DN45 43 90 62 UNE45 1 1/2"BSP
DN70 43 118 88 UNE70 2 1/2"BSP

08-189H-00 Barcelona Coupling Blank Cap

Size H(mm) W(mm) D(mm) Head L(mm)
DN45 62 90 62 UNE45 360
DN70 69 118 88 UNE70 360
