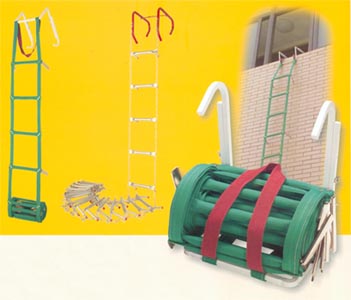

กก RESCUE LADDER >> PAGE   1 ALUMINUM POLYPROPYLENE STRAP ESCAPE LADDER Features: 1. Made of high quality aluminum rungs. 2. Fire approve polypropylene straps with light reflective material. 3. The ladder is capable to support 500-900kgs of weight and the rung itself can support 180-350kgs. 4. Wall Hook width: 150mm(6"), 180mm(7"), 240mm(9.5") and more size available ...... 5. Spring Stand Offs easy to package easy to install. 6. Light Material easy for Children to use. 7. Wire rope also available for the ladders. Specifications and Qualifications: Type LD-AL-5 LD-AL-7 LD-AL-10 LD-AL-13 LD-AL-16 LD-AL-19 Length (m) 5 7 10 13 16 19 Stand Off (each rung) pcs 14 20 29 38 47 56 Weight (each rung) kg 5.7 7.5 9.6 12 14.5 17 Stand off (every two rung) pcs 7 10 15 19 24 28 Weight (every two rung) kg 4.8 6.1 8 10 11.8 13.6 Stand off (every three rung) pcs 4 7 10 13 16 19 Weight (every three rung) kg 4.5 5.5 7 8.5 10 11.5 Place to Use up to 2nd floor up to 3rd floor up to 4th floor up to 5th floor up to 6th floor up to 7th floor STEEL ESCAPE LADDER Features: 1. Made of quality Steel rungs with anti-rusting treaded. 2. The ladder is capable to support 500-900kgs of weight and the rung itself can support 180-350kgs. 3. Wall Hook width: 150mm(6"), 180mm(7"), 240mm(9.5") and more size available ...... Specifications and Qualifications: Type LD-AL-5 LD-AL-7 LD-AL-10 LD-AL-13 LD-AL-16 LD-AL-19 Length (m) 5 7 10 13 16 19 Stand Off (each rung) pcs 14 20 29 38 47 56 Stand off (every two rung) pcs 7 10 15 19 24 28 Stand off (every three rung) pcs 4 7 10 13 16 19 Place to Use up to 2nd floor up to 3rd floor up to 4th floor up to 5th floor up to 6th floor up to 7th floor
