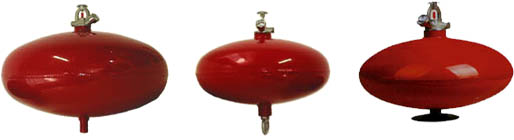

Suspended type automatic fire extinguisher
product feature:
1. Charged with BC or ABC dry powder according to customer's requirements.
2. Action temperature can be 57, 68, 79,93, 141.
3. Customers' label or logo can be put on or marked on the products.
product specification 3kg 4kg 4.5kg 6kg 8kg 10kg 12kg 16kg
diameter(mm) 240 272 194 295 295 337 367 392
height(mm) 238 250 312 265 295 295 318 342
capacity(L) 3.7 6.1 5.5 7.3 9.4 11.7 14.6 19.6
cylinder weight(Kg) 1.8 2.1 2.0 2.56 2.85 4.0 4.6 6.25
weight(Kg) 5.1 6.4 6.8 8.9 11.2 14.4 17.0 22.6
test pressure(bar) 25 25 25 25 25 25 25 25
