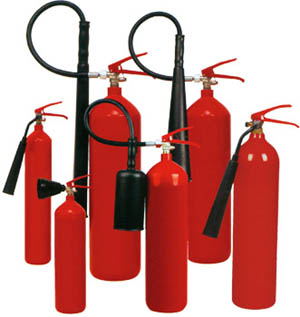

CE approved CO2 extinguisher
product feature:
1. CE valve, CE cylinder, high intensity PVC hose.

2. Cylinder material: carbon steel (CK45), or alloy steel (34CrMo4), or aluminium alloy (AA6061)

3. Beautiful appearance, easy operate.

4. Customers' label or logo can be put on or marked on the products.




CE valve
view different valves...



PVC hose
view different hose...
product specification 2kg 2.3kg 3kg 5kg
diameter(mm) 105 105 137 137
height(mm) 470 440 525 480 425 385 650 590
capacity(L) 2.7 3.5 3.1 4.5 4 7.5 6.7
cylinder weight(Kg) 3.80 3.45 4.40 3.90 5.70 5.10 9.40 8.40
weight(kg) 6.55 6.20 7.45 6.95 10.0 9.40 17.70 16.70
test pressure(bar) 250 315 250 315 250 315 250 315
working pressure at 20≧(bar) 166 210 166 210 166 210 166 210
material 34CrMo4 34CrMo4 34CrMo4 34CrMo4 34CrMo4 34CrMo4 34CrMo4 34CrMo4
